Vacuum auto loader 900L

DUST-FREE AND NO-CLEAN:

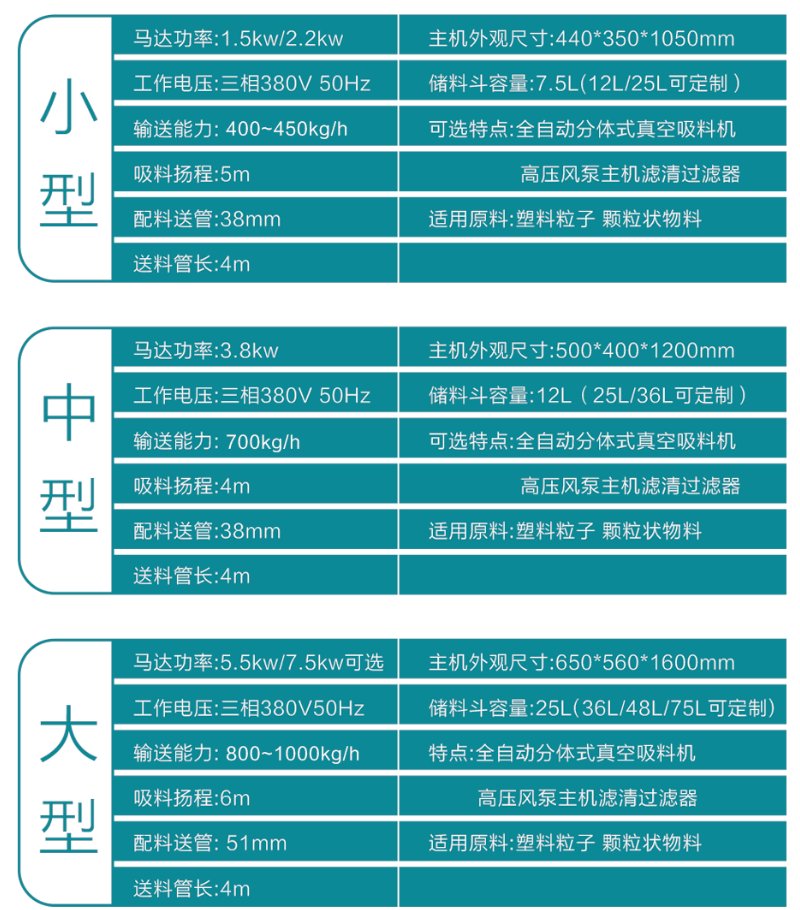

Small

Motor power: 1.5kw/2.2kw

Working voltage: three-phase 380V 50Hz

Conveying capacity: 400~450kg/h

Suction lift: 5m

Dosing feeding tube: 38mm

Feeding pipe length: 4m

Dimension of main machine:440*350*1050mm

Hopper capacity: 7.5L(12L/25L can be customized)

Optional features: Automatic split vacuum suction machine high pressure air pump host filter filter

Applicable raw materials: Plastic particles Granular materials

Medium size

Motor power: 3.8kw

Working voltage: three-phase 380V 50Hz

Conveying capacity: 700kg/h Suction lift:4m

Dosing feeding tube: 38mm Feeding tube length:4m

Dimension of main machine: 500*400*1200mm

Hopper capacity: 12L(25L/36L can be customized)

Optional features: Automatic split vacuum suction machine High-pressure air pump host filter filter

Applicable raw materials: plastic particles granular materials

Large size

Motor power: 5.5kw/7.5kw optional

Working voltage: three-phase 380V50Hz

Conveying capacity: 800~1000kg/h

Suction lift: 6m

Material feeding tube: 51mm

Feeding pipe length: 4m

Dimension of main machine: 650*560*1600mm

Hopper capacity: 25L(36L/48L/75L can be customized)

Features: Automatic split vacuum suction machine High-pressure wind pump host filter filter

Applicable raw materials: plastic particles granular materials

Details display:
