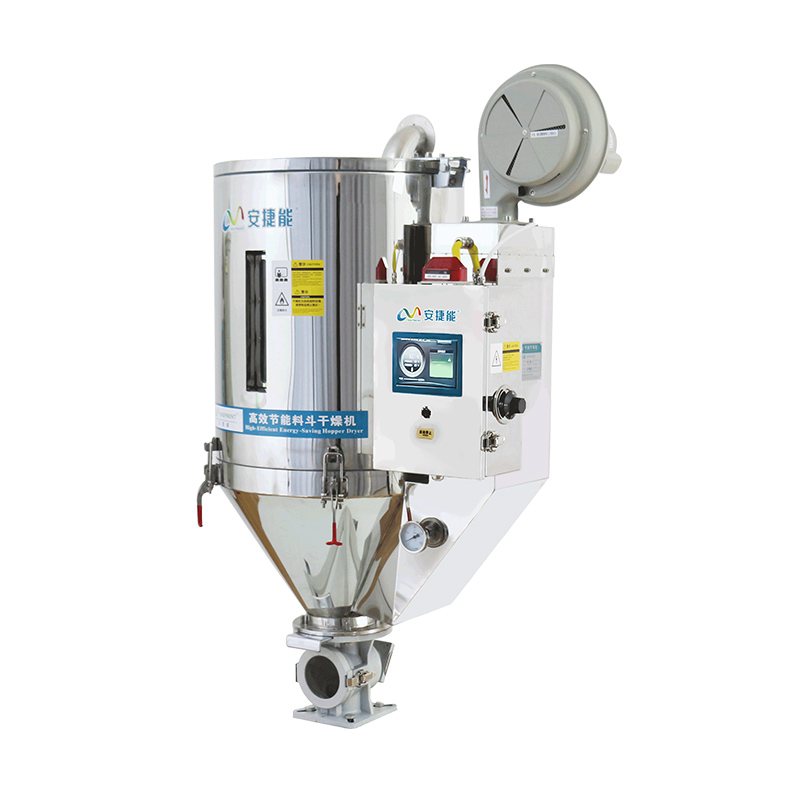

Intelligent control, higher energy saving rate
This hot air dryer is the most efficient and economical model for drying plastic materials and it can dry wet raw matreial due to packaging,shipping or recycling, and the direct-junction design is particularly suitable for drying directly on plastic molding machines. lt is fast and save space. lt is suitable for equipment machinery factory users to enhance the product aesthetics.
ENERGY-SAVING DRYER PRODUCT STRUCTURE AND ADVANTAGES
Double-layer stainless steel+Insulation layer
Good heat preservation/Fast heating/Save time and electricity
The energy-saving plastic dryer can directly replace the ordinary hopper.Compared with the ordinary hopper,the overall material is made of stainless steel with high hardness,effective corrosion resistance and aging resistance,so as to avoid the pollution of raw materials caused by corrosion,and effectively increase the service life.PID intelligent temperature control meter is used to prevent temperature control errors and avoid damage to raw materials.The barrel and base can be separated to facilitate refueling and cleaning.The whole machine is equipped with thermal insulation layer,uses finned heating tube, optimizes the air inlet,and saves more than 30% electricity.
Intelligent temperature control system-Over-temperature alarm brand components
The energy-saving hopper dryer adopts the latest PID linear control,which can accurately control the temperature at+-1℃,and the drying effect of raw materials is good.With three thermocouples,the over-temperature alarm system is sensitive,effectively eliminating the problems of raw material combustion and raw material agglomeration that are easy to occur in the old dryer,greatly improving production safety and saving production costs.
Reduce scald and improve factory environment
The latest PID linear control is adopted for the Engynent energy-saving hopper dryer,which can accurately control the temperature at plus or minus 1 degree.The drying effect of raw materials is good.With three thermocouples,the over-temperature alarm system is sensitive,effectively eliminating the problems of raw material combustion and raw material agglomeration that are easy to occur in the old dryer,greatly improving production safety and saving production costs.
TEMPERATURE CONTROL BOX Digital display intelligent temperature control,simpler operation |
BRAND CONTACTORS Digital display intelligent temperature control Accurate temperature control |
PURE COPPER FAN Copper core click,strong power Stable operation and low noise |
TEMPERATURE GAUGE High sensitivity Accurate tree value display |
型号 MODEL | A | B | C | D | E | 外形尺寸 OVERALL DIMENSION | 加热功率 HEATING POWER | 风机功率 FAN POWER |
EGN-6E | 475mm | 210mm | 485mm | 715mm | - | 210*475*715mm | 1.2kw | 100w |
EGN-12E | 530mm | 260mm | 580mm | 775mm | 260*530*775mm | 2.2kw | 100w | |
EGN-25E | 765mm | 410mm | 730mm | 1100mm | 180mm | 410*730*1100mm | 3kw | 135w |
EGN-50E | 905mm | 490mm | 790mm | 1285mm | 180mm | 490*790*1285mm | A 8kw | 155w |
EGN-75E | 1050mm | 560mm | 900mm | 1380mm | 180mm | 560*900*380mm | 5.5kw | 155w |
EGN-100E | 1100mm | 610mm | 970mm | 1400mm | 185mm | 610*970*1400mm | 7.8kw | 215w |
EGN-150E | 1280mm | 650mm | 1000mm | 1570mm | 185mm | 650*1000*1570mm | 8.5kw | 215w |
EGN-200E | 1450mm | 748mm | 1200mm | 1820mm | 220mm | 748*1200*1820mm | 10kw | 320w |
EGN-300E | 1520mm | 810mm | 1270mm | 1740mm | 220mm | 810*1270*1740mm | 15kw | 320w |
EGN-400E | 1860mm | 890mm | 1360mm | 2180mm | 270mm | 890*1360*2180mm | 19kw | 340w |
EGN-500E | 1950mm | 952mm | 1450mm | 2250mm | 270mm | 952*1450*2250mm | 21kw | 340w |
EGN-600E | 2100mm | 952mm | 1450mm | 2400mm | 270mm | 952*1450*2400mm | 21kw | 340w |
NOTE: The material bucket of dryer above 100kg is equipped with lifting ring
