High precision separation of plastics,
Granules,powders,recycled materials within
Rapid identification of adulterated metallic substances.
Separation of metallic impurities of≥0.2 mm
Details Display:
 |  |  |  |
RUBBER GRANULES |
CEREALS |
PELLET PRODUCTS |
FOOD POWDERS |
型号 MODEL | RL-25G | RL-30G | RL-40G | RL-50G | RL-60G |
电压 VOLTAGE | 220V,50/60Hz | 220V,50/60Hz | 220V,50/60HZ | 220V,50/60HZ | 220V,50/60HZ |
工作温度范围(℃) OPERATING TEMPERATURE | -10~+80 | -10~+80 | -10~+80 | -10~+80 | -10~+80 |
下料速度 DISCHARGE SPEED | 自由下落 Free fall | 自由下落 Free fall | 自由下落 Free fall | 自由下落 Free fall | 自由下落 Free fall |
排料时间 DISCHARGE TIME | 0 · 1~15秒可调 Adjustable from 0.1 to 15 seconds | 0 · 1~15秒可调 Adjustable from 0.1 to 15 seconds | 0 · 1~15秒可调 Adjustable from 0.1 to 15 seconds | 0 · 1~15秒可调 Adjustable from 0.1 to 15 seconds | 0 · 1~15秒可调 Adjustable from 0.1 to 15 seconds |

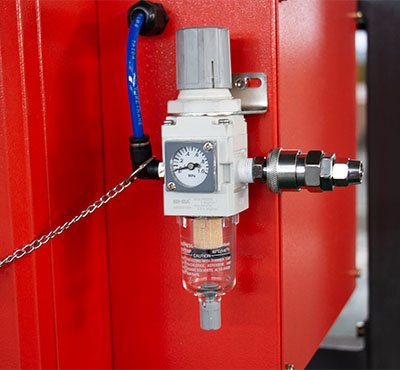

压缩空气 COMPRESSED AIR | 3Bar~5Bar | 3Bar~5Bar | 3Bar~5Bar | 4Bar~6Bar | 4Bar~6Bar |
下料口径 LOWERING CALIBRE | φ25mm | φ30mm | φ38mm | φ50mm | φ60mm |
过料量(新料计量) OVERFEED VOLUME (NEW MATERIAL MEASUREMENT) |
250KG/HR |
300-400KG/HR |
400-500KG/HR |
700-1000KG/HR |
1000-1200KG/HR |
检测精度 DETECTION ACCURACY | 0 ·2~0 ·3mm | 0 ·3~0 ·4mm | 0 ·4~0 ·5mm | 0 ·5~0 ·6mm | 0 ·6~0 ·7mm |
